Complete Kit – Retro Handspray

Description

The Handspray system is the most high quality, reliable and easy to use full metal bidet spray system available on the market today.

Installation is so simple with all parts supplied, all you need is a spanner! Click here for Installation Instructions.

The water diverter allows you to turn on the Handspray with just a turn of a dial. It has been specially designed with a unique safety feature to ensure the user always turns it off. The dial needs to be in a downward position to operate the Handspray and in an upward position to fill the cistern.

The flexible hose supplied was specifically manufactured with deep dish nuts. This allows for easy installation and helps prevent cross threading. The unique cone shaped washer enables the installation process to be quick and simple, eliminating the need of plumbers tape.

The backflow device provided is small and of the highest quality.  Most dual check valves are only tested to 700KPA, but the dual check valve supplied holds a safety rating of 1200KPA.

If you live in a high pressure water area then you will require a pressure restrictor. Most pressure limiting valves are large and bulky, but the optional pressure restrictor available for purchase has a slimline design. Discuss with your plumber about your water pressure to determine if this valve is required.

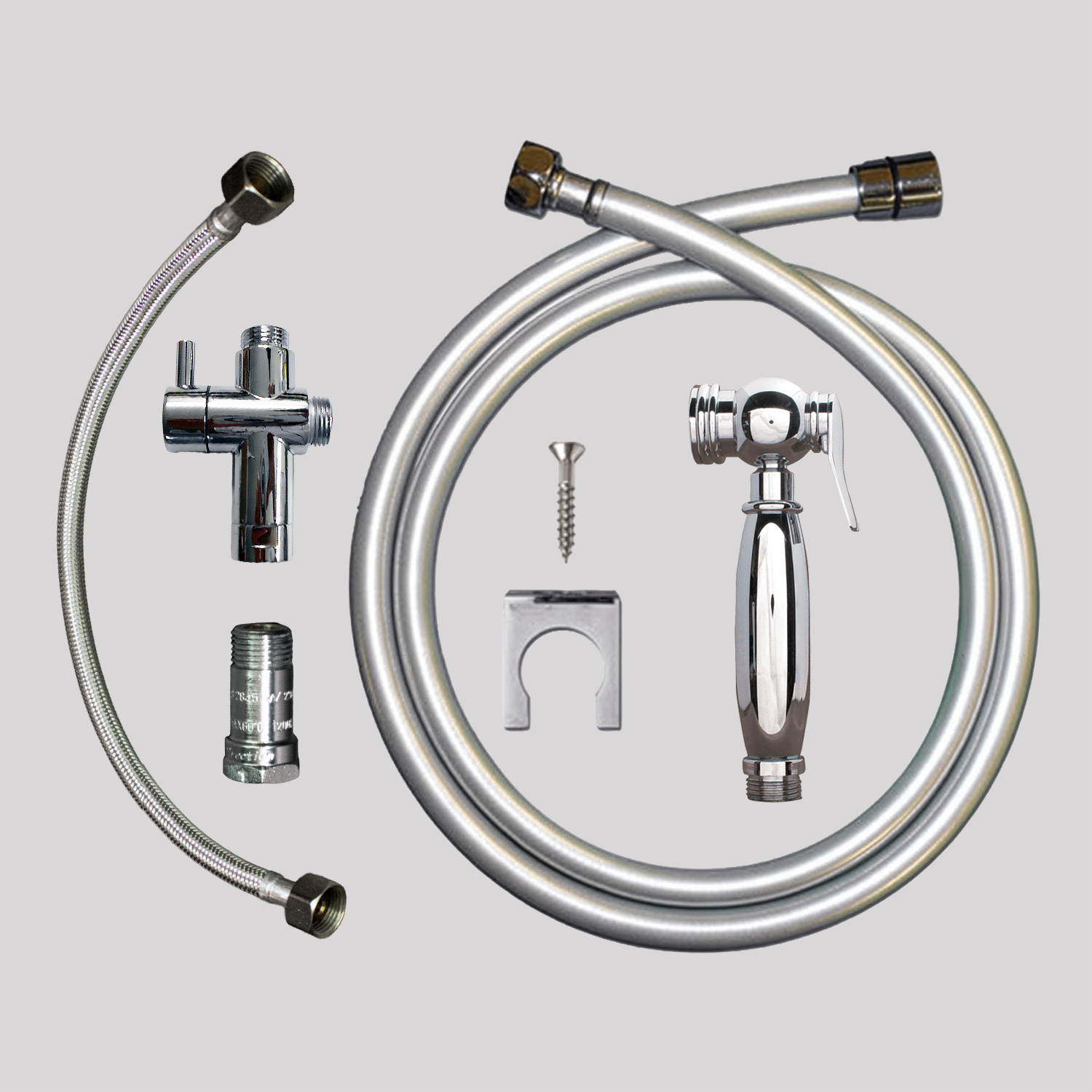

Box Includes:

• Handspray
• High Pressure 1500KPA Hose
• Handspray Wall Holder
• Screw
• Dual Check / Back Flow Valve
• Water Diverter
• Braided Hose

Warranty:

Full Manufacturer’s Warranty – 12 Months

NOTE: Handsprays shall be installed in accordance with The National Construction Code – Volume Three. If used as a douche spray it will be classified as a High Hazard device and appropriate additional backflow prevention will be required.

For use as a bidet spray, a RPZD that complies with AS/NZS 2845.1 or AS 2845.2 needs to be installed for the application to comply with AS/NZS 3500.1 Water Services Clause 12.2.3.
